34:1 Metal Gearmotor 25Dx52L mm HP 6V with 48 CPR Encoder

Product Code: JS17262
Comments (0) | Add Comments
46.95 USD
Out of stock Alert when in stock Add to Favorites
Jsumo Robot parts shipment and price information
  • Features

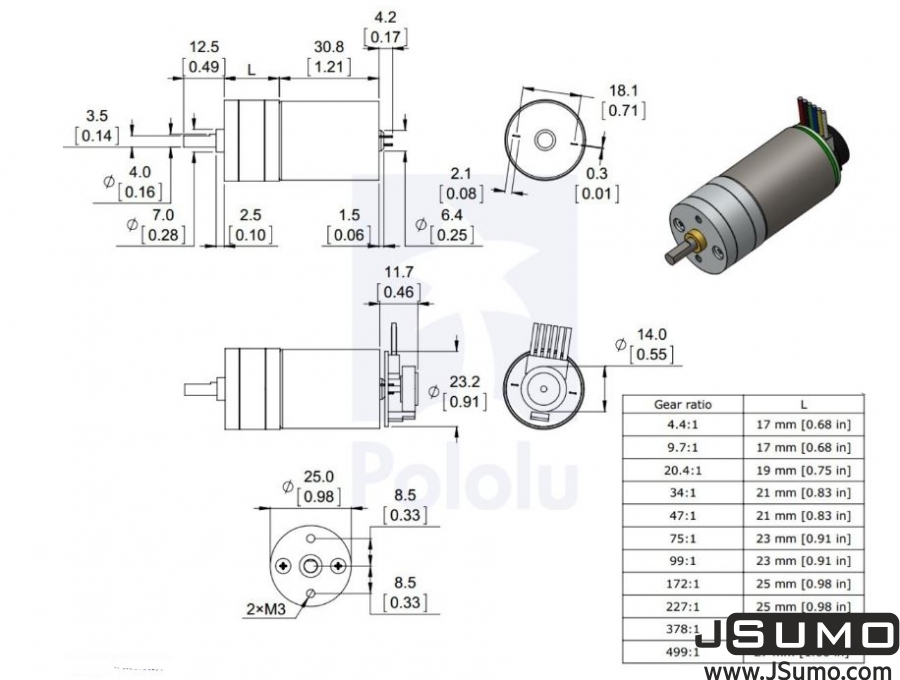

  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?
  • ​This gearmotor consists of a high-power, 6 V brushed DC motor combined with a 34.014:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 1632.67 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.

    Key specs at 6 V: 280 RPM and 550 mA free-run, 90 oz-in (6.5 kg-cm) and 6.5 A stall.

    Using the encoder (if applicable)
    The versions of these gearmotors with encoders use a A two-channel Hall effect sensor to detect the rotation of a magnetic disk on a rear protrusion of the motor shaft. The quadrature encoder provides a resolution of 48 counts per revolution of the motor shaft when counting both edges of both channels. To compute the counts per revolution of the gearbox output, multiply the gear ratio by 48. The motor/encoder has six color-coded, 8″ (20 cm) leads terminated by a 1×6 female header with a 0.1″ pitch, as shown in the main product picture.
    Color Function
    Red motor power (connects to one motor terminal)
    Black motor power (connects to the other motor terminal)
    Green encoder GND
    Blue encoder Vcc (3.5 – 20 V)
    Yellow encoder A output
    White encoder B output

    The Hall sensor requires an input voltage, Vcc, between 3.5 and 20 V and draws a maximum of 10 mA. The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells you the speed of the motor, and the order of the transitions tells you the direction. The following oscilloscope capture shows the A and B (yellow and white) encoder outputs using a motor voltage of 6 V and a Hall sensor Vcc of 5 V:

    Encoder A and B outputs for 25D mm HP 6V metal gearmotor with 48 CPR encoder (motor running at 6 V).

    By counting both the rising and falling edges of both the A and B outputs, it is possible to get 48 counts per revolution of the motor shaft. Using just a single edge of one channel results in 12 counts per revolution of the motor shaft, so the frequency of the A output in the above oscilloscope capture is 12 times the motor rotation frequency.
