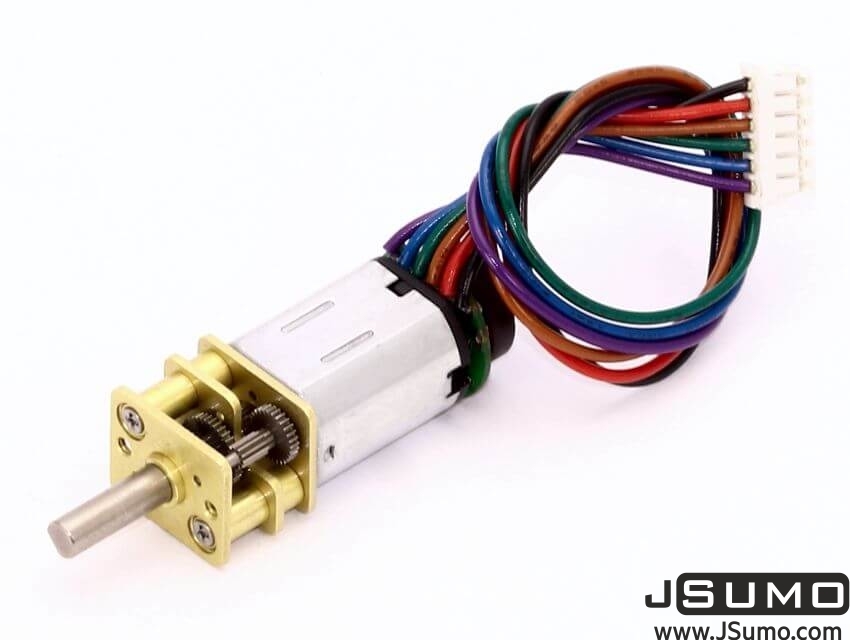

MP12 6V 630 RPM High Power Micro Gearmotor With Encoder

Product Code: MP126V630HPEN
Comments (0) | Add Comments
18.95 USD
Out of stock Alert when in stock Add to Favorites
Jsumo Robot parts shipment and price information
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?
  • This motor is similar to Pololu brand's popular Micro Metal HP series but produces more power and comes with 2 channel encoder attached.

    The size of this micro-metal motor with a rotation speed of 630 RPM and a gear ratio of 50:1 is 12 mm x 34 mm. For ease of assembly and power transfer, the D-shape output shaft is 9.2 mm long and 3 mm in diameter. The motor's operating range is 3-9 V. The recommended operating voltage is 6V.

    Dimensions 12 x 34 mm
    Weight 9.7 g
    Shaft Diameter /Type 3 mm / D Type
    Shaft Length 9.2 mm
    Suggested Working Voltage 3 - 9 V
    Gear Ratio 50:1
    Speed @6V 630 rpm
    Current @6V 90 mA
    Stall Current @6V 2800 mA
    Stall Torque @6V 1.35 kgcm

    Our all mini/micro motors have 3mm shafts. Which means they are perfectly fit to our SLT20, SLT20P and JS3811 Silicone series wheels.

    What Means HP?
    HP means high power, this motors give highest torque for their size. And also they draw highest currents when compared with traditional same size models.
