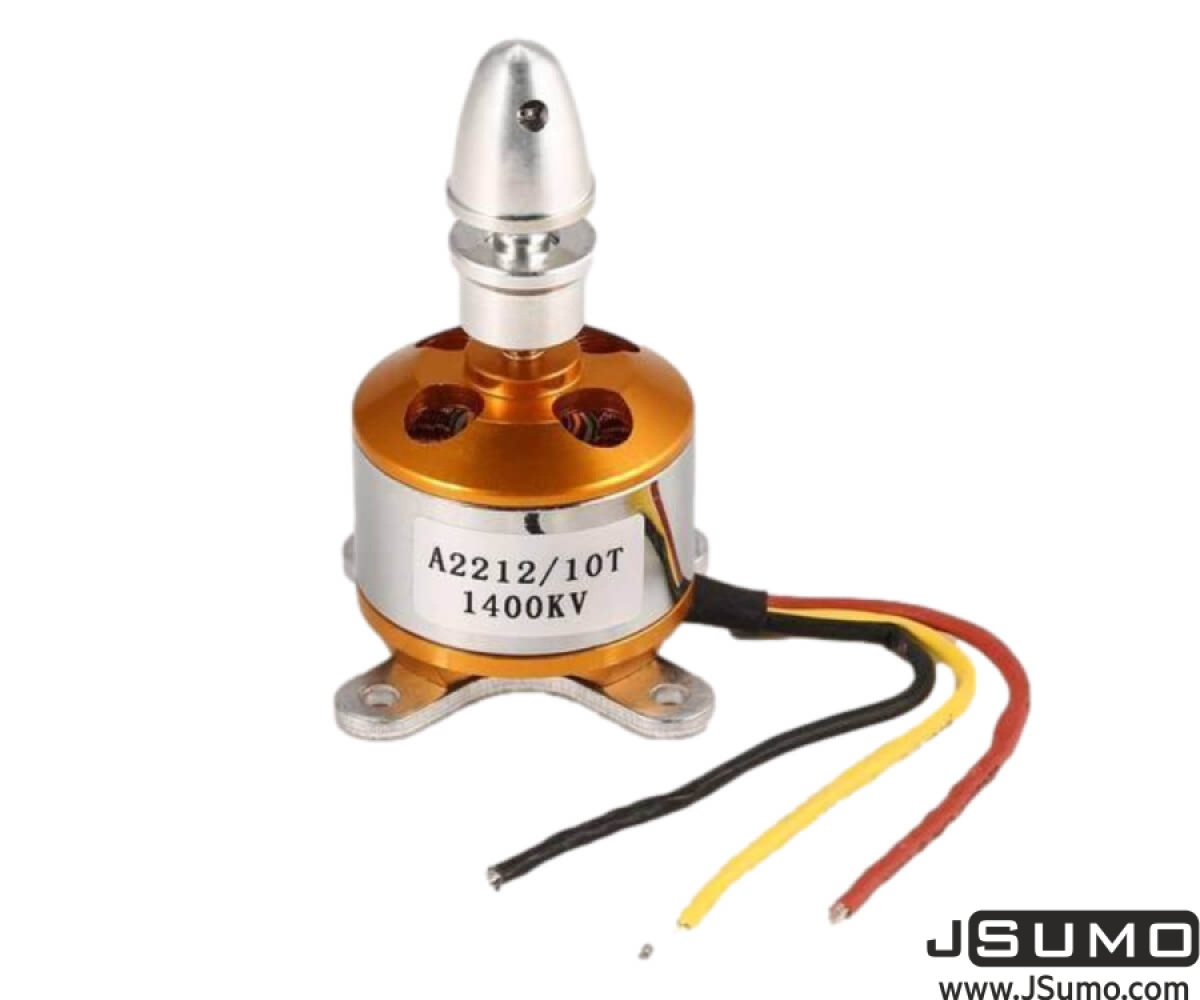

A2212 1400KV Outrunner Brushless Motor

Product Code: A2212BM
Comments (0) | Add Comments
16.95 USD

Quantity

Stock: In stock (85 Pieces)

Add to Favorites
Jsumo Robot parts shipment and price information
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

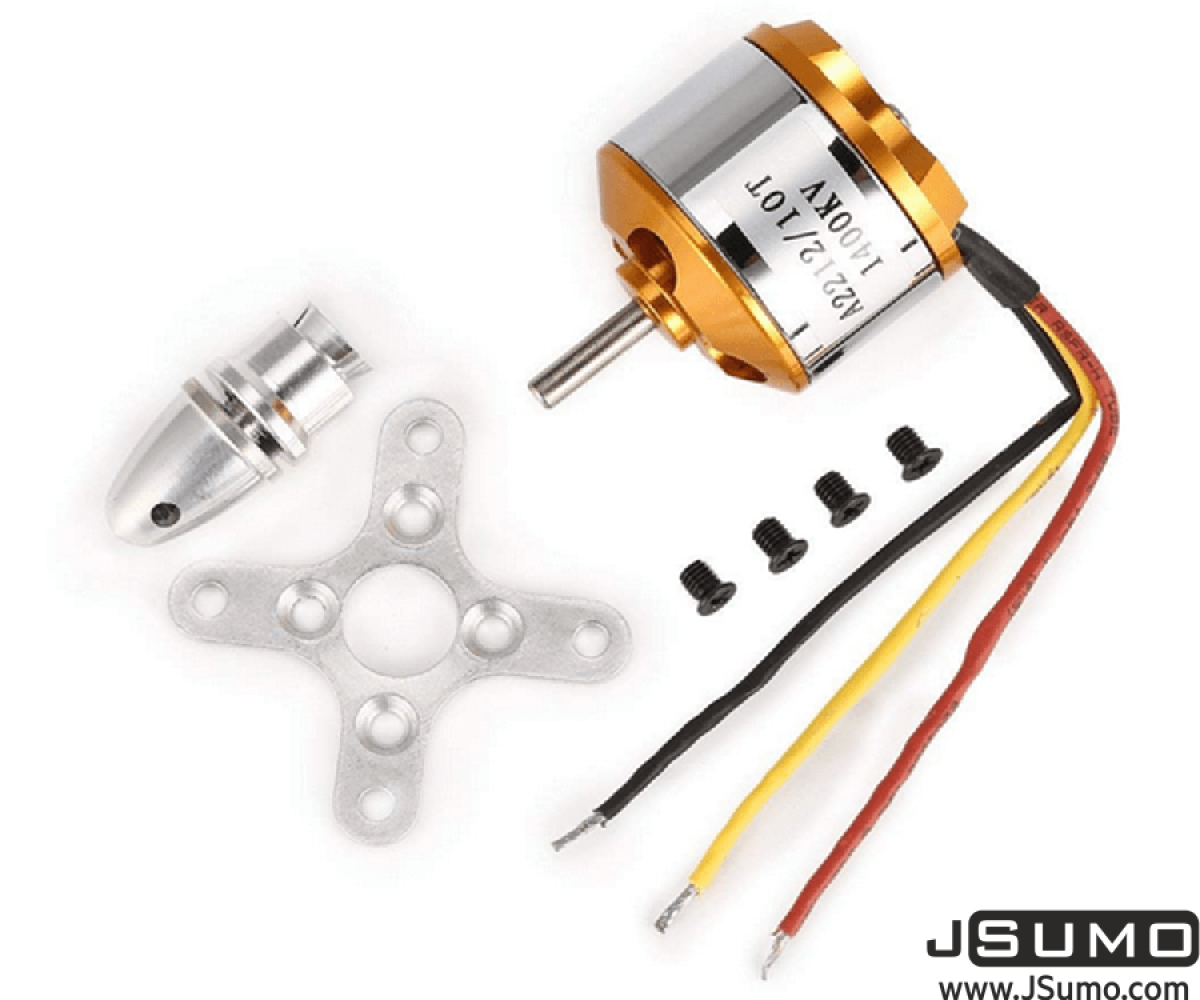

  • The motor features a 3.17mm hardened steel shaft, dual ball bearings, and has 3.5mm gold spring male connectors already soldered, and also includes 3 female connectors for your speed control. A bullet type prop adapter and cross motor mount are included in the package. Mounting holes have 16mm and 19mm spacing on centers and are tapped for 3mm (M3) screws.

    Suitable motor for drones, RC planes and combat robots! It produces 1400 RPM for applied unit voltage. (10V means 14.000 RPM total)

    We recommend the following setup for the motor:
    3S LiPo, 1000-1800mAh according to overall weight.
    20 or 30A ESC,

    Specifications:
    Number of Cells: 2-3s lipo (7V to 12V)
    Max Efficiency Current: 6-12A (>75%)
    No Load Current (10v): .7A
    Max Current: 16A/60s
    Internal Resistance: 65mΩ
    Shaft Size: 3.17mm
    Poles: 14
    Max Watts: 180w
    Weight: 47g
    Dimensions: 27.5mm (Diameter) x 30mm (Length)
    Minimum Recommended ESC: 20A
    Recommended Robot & Model Weight: 300-800g

    Suitable ESC is shown below.
