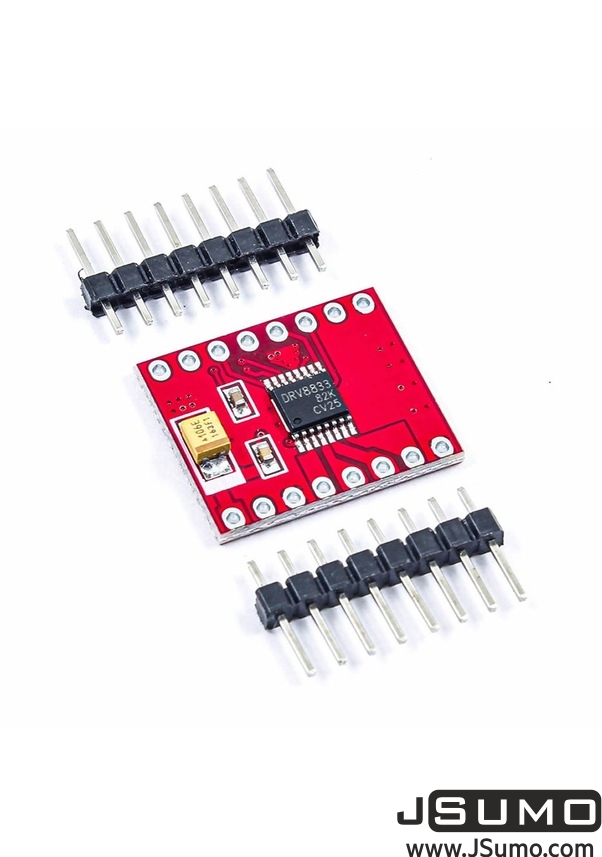

DRV8833 Stepper Motor Driver Module DC 10V 1.2A PWM Double H Bridge

Product Code: JS15787
Comments (0) | Add Comments
4.00 USD

Quantity

Stock: In stock (2 Pieces)

Add to Favorites
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

  • Features:


    Integrated: DRV8833
    Working voltage: DC 2.7V / 10.8V
    Working current: 1.2A per motor (Momentary 2A)
    Motor outputs can be combined. 2.4A motor current
    Double H bridge motor driver
    It can drive 2 DC motors
    It can drive 1 piece of stepper motor
    The motor can drive clockwise and counterclockwise.
    Operating frequency: Maximum 100kHz
    Control signal voltage level: DC 3V / 5V
    High current protection
    high temperature protection
    Reverse voltage connection protection
    Color: Red
    Operating temperature: -10C / 80C
    2 x 8 pin empty sockets 2.54mm on card edges
    Dimensions: 18mm x 21mm
    Weight: 3gr
