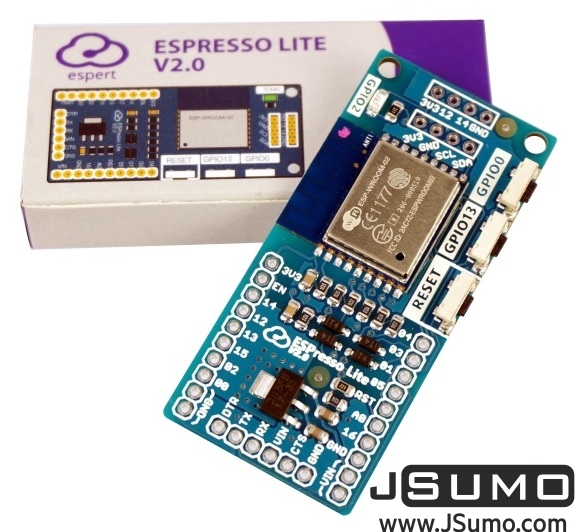

ESPresso Lite V2.0

Product Code: 826
Comments (0) | Add Comments
11.50 USD

Quantity

Stock: In stock (19 Pieces)

Add to Favorites
Jsumo Robot parts shipment and price information
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?
  • Espresso Lite V2.0 Specs and Features:
    • Features Espressif System's ESP8266 WROOM-02 Wi-Fi module (with 4Mb flash)
    • Design for IoT with free espert.io cloud and app service
    • Support the Arduino IDE (boards manager) and libraries
    • Auto program loading from Arduino IDE, using UC00A (or other compatible USB to Serial)
    • Vin: 5 to 12VDC
    • Operating Voltage: 3.3VDC
    • On board 3.3V Voltage Regulator with maximum current of 800mA continuous, 1A peak
    • One Reset button, two User Programmable buttons
    • WROOM-02 module is FCC, CE & TELEC certified
    • Breadboard friendly breakout pins
    • Ready pads for I2C OLED panel
    WROOM-02 Specs and Features:
    • Operating Voltage: 3.0 to 3.6VDC
    • Operating Current: Average = 80mA
    • IEEE 802.11b/g/n at 2.4 GHz
    • WiFi mode: SoftAP/Station/SoftAP + Station
    • Security: WPA/WPA2
    • Encrytion: WEP/TKIP/AES
    • Integrated low power 32-bit MCU
    • Integrated 10-bit ADC
    • Integrated TCP/IP protocol stack
    • Integrated TR switch, balun, LNA, power amplifier and matching network
    • Integrated PLL, regulators, and power management units
    • Various interfaces available, including SDIO, HSPI, UART, I2C, I2S, IR, PWM, GPIO, etc.
    • Supports antenna diversity
    • Deep sleep power <10uA, Power down leakage current < 5uA
    • Wake up and transmit packets in < 2ms
    • Standby power consumption of < 1.0mW (DTIM3)
    • +20dBm output power in 802.11b mode
    • Operating temperature range -40C ~ 125C
    • FCC, CE and TELEC certified
