GZERO Robot Sumo – MEB Turkey Robot Competition 2016 1st Place Winner

GZERO Robot Sumo – MEB Turkey Robot Competition 2016 1st Place Winner

I started to design with my team at the beginning of first months of 2015 at Istanbul, Turkey. I updated old design of Senju and it bringed me victory. We made very harsh matches with another Turkish teams and never lost. Please watch video below.

Mechanical Parts

First 3D design was made, and it began to be made in production. 2 weeks within ended the production of CNC and CNC Laser machine.

Gears: Specially made sumo robot gears for speed and usability. 0,6 module helps good reduction in only 1 stage while maintaning small dimensions. Pinion gear specially made for 6mm shaft maxon motors. Pinion gear covers the shaft completely.
(https://jsumo.com/shop/steel-gear-bundle-06-module-4301-reduction/)

Wheels: The tire is directly molded to aluminum hubs by vulcanisation for making stronger & harder. Which is a must for sumo robot projects. It jsumo.com these wheels are sold. (http://jsumo.com/shop/jsumo-robot-wheel-40x30mm-pair/ )

gzero-sumo-robot-bottom-magnets
Magnets : Best Neodymium Magnets for using at Japanese style sumo robots. Each magnet can give lots of pulling force to your robot. Used moderately.

gzero-sumo-robot-top-robot-circuits

Electronic Parts

Motor Control; Our own design special motor driver boards.
We are using Hip4081 mosfet H bridge driver ICs. And for mosfets I used IRF3205 mosfet transistors. At first test we used 4 mosfet for each driver. Later I doubled mosfets.

motor-drivers-for-sumo-robot-hip4081-IRF3205

Microcontroller; specially designed control board, PIC16F series were used. Our controller uses PIC16F877A working at 20Mhz. I choosed Pic16F877A because of easiness and small size.

Sensors

– 5 x Keyence MultiBeam PZ-G41P Diffuse Reflective Type Infrared Sensor;
They have superior sense distances.
– 2x Pepperl+Fuchs Diffuse Type Reflective Sensor (ML-8-1000-RT)
We used them also looking to front (Left and right holes at front)
Line (Edge) Sensors :
-4 x QTR-1A Contrast (Edge) Sensor. They are very tiny.

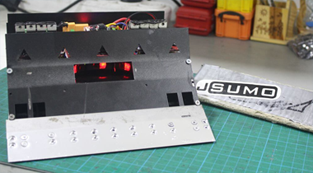

gzero-sumo-robot-sumo-blade-keyence-sensors
gzero-sumo-robot-bottom-magnets
gzero-sumo-robot-side
gzero-sumo-robot-front

Share this post

Comments (6)

  • Omar Reply

    Hi my name is Omar, i was wondering if you could teach me how to make a Robot like this one please, e-mail me or send an imbox to me on facebook ohh and Greetings from Mexico!!

    June 9, 2016 at 6:49 AM
  • David Reply

    How can you stop like that suddenly?

    July 19, 2016 at 3:44 PM
    • Emre Tarhana Reply

      With powerful magnets and high-friction wheels.
      I recommend withdrawal without any delay when changing direction.

      October 12, 2016 at 8:41 AM
  • Tomasz Wojnowski Reply

    Hi,
    Did you just simple doubled the IRF3205 by connecting two of them pin to pin together (2 MOSFET in parallel) or you used some external parts to double them?
    Could you attach the schematic, please?
    Thanks
    Tomasz

    August 10, 2016 at 1:47 AM
  • HI Reply

    hi. I have a question. How many degrees in a blade?

    September 10, 2016 at 6:26 AM
    • Emre Tarhana Reply

      Hi, incline about 25 degrees.

      October 12, 2016 at 8:43 AM
