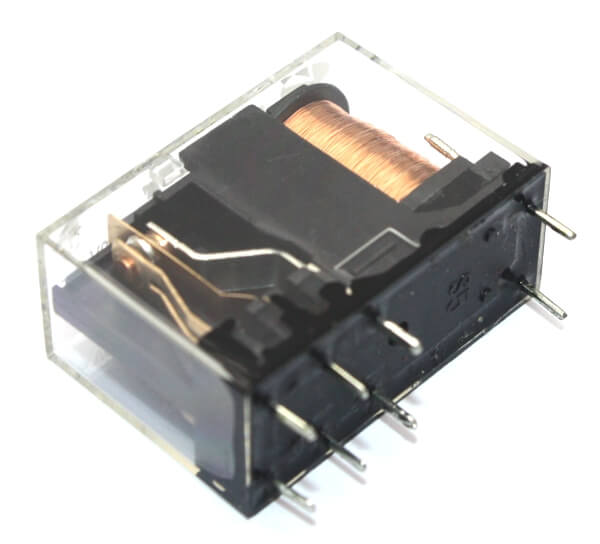

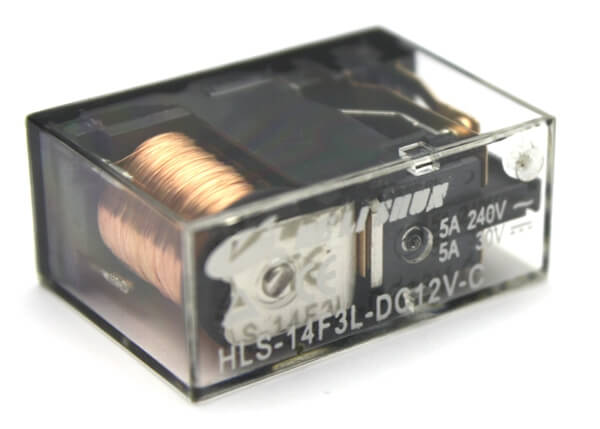

HELISHUN DPDT Relay 12V - 5A Drive @30V

Product Code: DPDTREL5A
Comments (0) | Add Comments
3.45 USD

Quantity

Stock: In stock (99 Pieces)

Add to Favorites
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?
  • Contact Form 5A /1C
    Contact Material Ag Alloy
    Contact Ratings 5A 240VAC/5A 30VDC
    Max Switching Voltage 250VAC/110VDC
    Max Switching Current 5A
    Max Switching Power 1250VA/150W
    Initial Contact Resistance 100m Ω Max at6VDC 1A
    Life Expectancy Electrical 100,000 Operations (rated load)
    Life Expectancy Mechanical 10,000,000 Operations (no load)

    GENERAL DATA :

    Insulation Resistance 1000M Ω Min at500VDC
    Dielectric Strength Between Open Contacts 1000VAC 50-60HZ( 1 minute)
    Dielectric Strength Between Contacts And Coil 5000VAC 50-60HZ( 1 minute)
    Operate Time 15ms max
    Release Time 8ms max
    Ambient Temperature -30 ℃ to+70 ℃
    Shock Resistance Malfunction 10G
    Destruction 100G
    Vibration Resistance 10-55Hz,1.5mm double amplitude
    Ambient humidity 20-85% RH
    Weight Approx 13g
    Delivery Information
    :
    Same Day shipping from stock.
  • Size (cm)
    :
    4 x 4 x 3
    Height (cm)
    :
    2
    Weight (Kg)
    :
    0.05
