Ultra Light Gear Bundle (0.4 Module - 5:1 Reduction)

Product Code: T1276
Comments (0) | Add Comments
32.50 USD

Quantity

Stock: In stock (22 Pieces)

Add to Favorites
Jsumo Robot parts shipment and price information
  • Features
  • Dimensions
  • Comments (0)
  • Payment Options
  • How Will We Ship To You?

  • Under normal conditions, brass is a heavy and tough material. Impact resistance is good, but might be heavy for a fast rotating gear. We are happy to have produced brass 0.4 module gears for fast robots and projects with our manufacturing capabilities at JSumo.


    Suitable for usage with 2mm shaft motors (can be easily enlarged to 3mm), This bundle is designed for using good reduction ratio with the lightest option possible.

    Presicion machined 0,4 module gear set. Total reduction is 5:1. After the main big gear is processed on the cutting benches, 68% of its weight is processed in the CNC vertical machining centers. (reduced from 16 grams to 5 grams)

    Its main usage area is designed as line following robots and lightweight, featherweight combat robots.

    Bundle includes 2 gears for 1 stage.

    • Motor Pinion – 16 Tooth
    • Big spur gear – 80 tooth

    Total weight is gear bundle is only 8.4 grams!

    And gear sizes for estimating gearbox design:

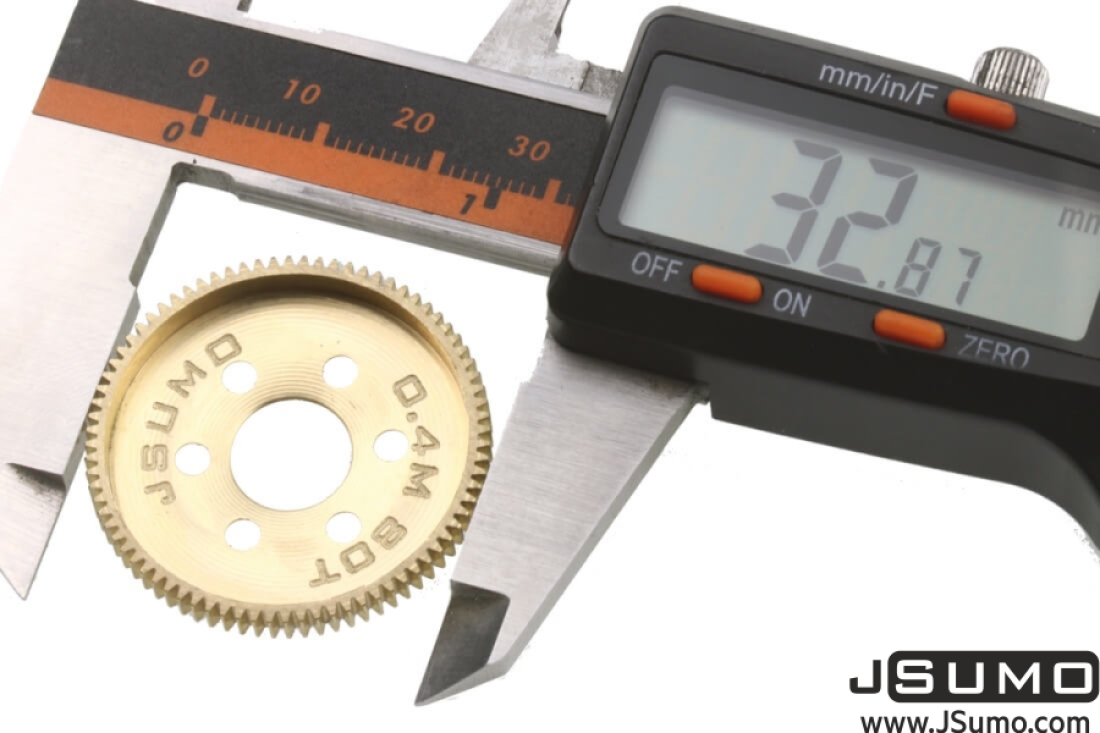

    Big Spur Gear: 32.87 mm Diameter, 3.3mm Thickness.
    Pinion Gear: 7.25 mm Diameter, 9.75mm Thickness (Gear Width is 4.3mm)

    You can buy the gears in bundle at a discounted price instead of purchasing the package separately by clicking "Add to Cart" on this page.

    0-4-module-gears

    Features
    Gear Type
    :
    Spur Gear
    Module
    :
    0.4 Module
    Hole Diameter
    :
    2 mm
    Material
    :
    Brass
    Tags
    cnc machined
  • Size (cm)
    :
    4 x 4 x 2
    Height (cm)
    :
    4
    Weight (Kg)
    :
    0.045
